1947 Ken-Skill Suspension & Wheels

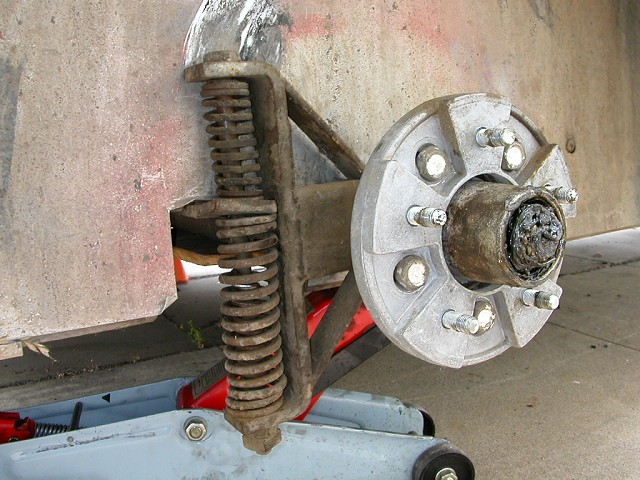

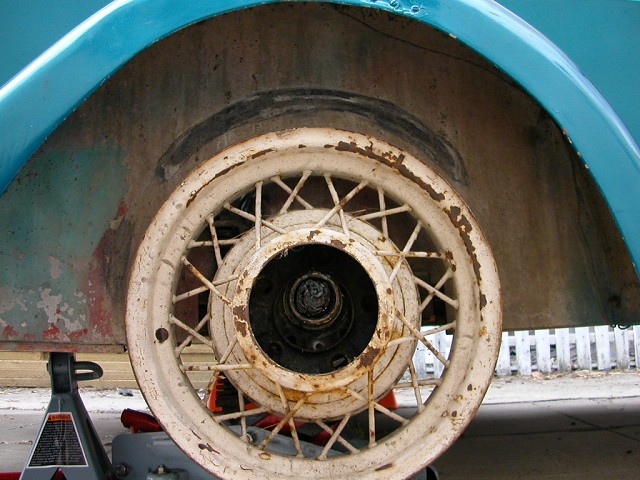

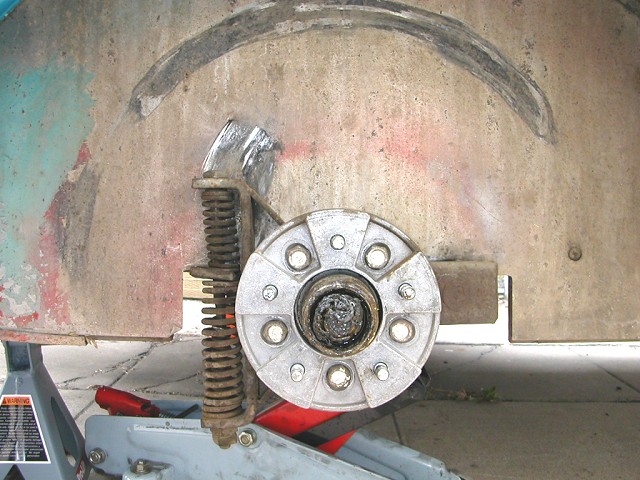

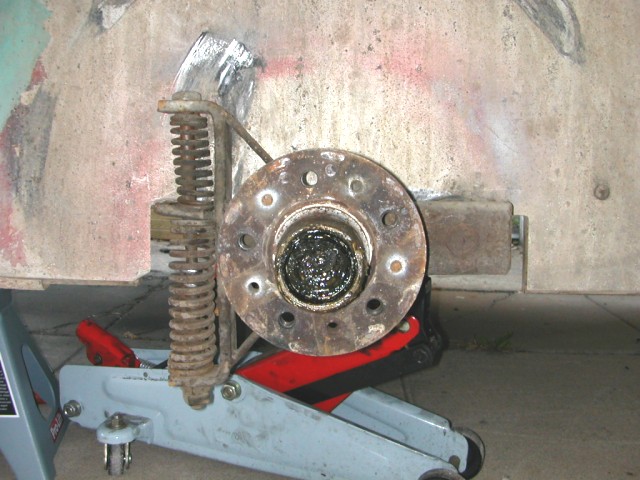

I pulled one of the wheels off to check the suspension and to see what bolt pattern the hubs are. The original wheels should be 6-lug 16" Chevrolet truck wheels. The hubs are 5-lug 4 1/2" (Ford/Chrysler) pattern and the wheel adapters are made to mount 5-lug 4 3/4" (GM) wheels. I thought about using Ford 16" wire wheels which have a 5-lug 5 1/2" bolt pattern.

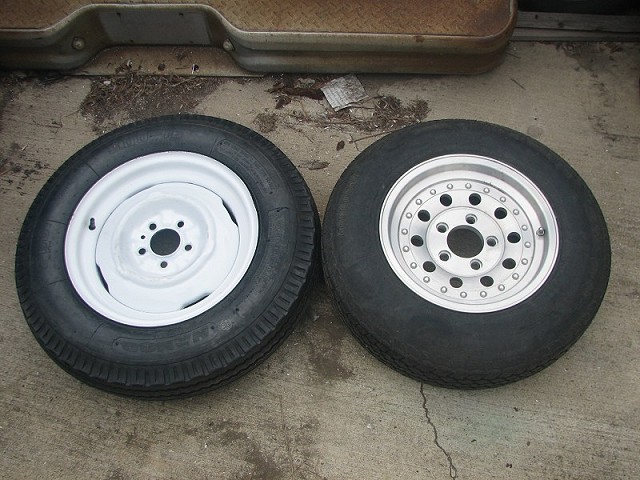

I finally found some wheels that fit the trailer. They are 16 x 4 1/2" Dodge truck wheels. Very hard to find but they fit the suspension and also allow me to use the same dog-dish hub caps that came on my Dodge wagon.

Click here for information on another owner's Ken-Skill where he has rebuilt the original suspension.

Click here to return to the main Ken-Skill page.

Click on image for larger view. Click on image for larger view. Click on image for larger view. Click on image for larger view. Click on image for larger view. Click on image for larger view.
